Product Description

• Max round 500 mm
• Max rectangular 610×560 mm
• Max bundles 480x260mm

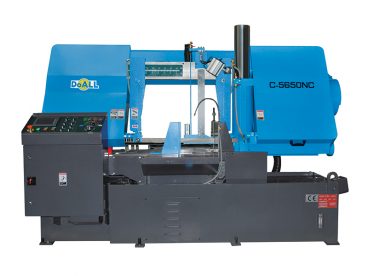

The DoALL NC-Line is a line of machines designed and built for general purpose sawing operations both in manual or automatic mode. For ease of use these machines are already equipped with a standard 2 meters roller table, chip conveyor, variable vice pressure control, double retracting index vice, worklight and toolbox.

Standard

• PLC control for all electric and hydraulic functions. Color touch screen control panel with alarm messages
• Infinitely variable band speed controlled by inverter
• Idler wheel motion detector with blade stalling and band break switch
• Shuttle type automatic feed and sliding work table with roller
• Hydraulic band tension
• Two-step stroke vices
• Split front vice
• Double retracting index vice
• Workheight sensor and rapid approach
• Carbide inserts with roller bearings
• Nesting fixture and vertical rollers for bundle cutting
• Length setting: magnetic scale
• 20 jobs presetting
• Automatic chip conveyor
• Power driven band brush
• Flushing hose for machine cleaning
• Worklight
• One roller conveyor of 2 meters
