Product Description
- Max round 800 mm
- Max rectangular 1.000×800 mm

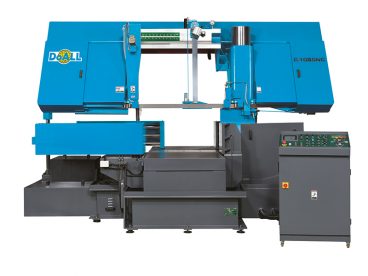

The DoALL NC-Line is a line of machines designed and built for general purpose sawing operations both in manual or automatic mode. For ease of use these machines are already equipped with a standard 2 meters roller table, chip conveyor, variable vice pressure control, double retracting index vice, worklight and toolbox.
Standard
- PLC control for all electric and hydraulic functions. Color touch screen control panel with alarm messages
- Infinitely variable band speed controlled by inverter
- Idler wheel motion detector with blade stalling and band break switch
- Shuttle type automatic feed and sliding work table with roller
- Hydraulic band tension
- Split front vice
- Double retracting index vice
- Workheight sensor and rapid approach
- Carbide inserts with roller bearings
- Length setting: magnetic scale
- 20 jobs presetting
- Automatic chip conveyor
- Power driven band brush
- Flushing hose for machine cleaning
- Worklight
- One roller conveyor of 2 meters
